Prepare your project for the Starter Kit

Email Builder in Xperience by Kentico empowers non-technical users to define the appearance of emails with a friendly drag-and-drop interface. Through Templates, Sections, and Widgets, marketers have more flexibility than standard email templates in controlling email structure, visual design, and content.

The Email Builder Starter Kit provides a pre-made set of Email Builder components that you can use in your project, saving you time to spend on additional custom components or other areas of the project.

Let’s look into the process of integrating the Starter Kit into an existing project, using the Training guides repository as an example.

Prepare your solution for Email Builder

To begin, install the Kentico.Xperience.Mjml and Microsoft.AspNetCore.Components.Web NuGet packages in your solution.

Make sure to install the version of Kentico.Xperience.Mjml that matches your other Kentico NuGet packages (30.6.2 in this example).

The process may vary depending on your approach. In the Training guides repository, you can simply edit the Directory.Packages.props file.

XML

Directory.Packages.props


<Project>
  ...
  <ItemGroup>
    ...
    <PackageVersion Include="kentico.xperience.mjml" Version="30.6.2" />

    <PackageVersion Include="Microsoft.AspNetCore.Components.Web" Version="8.0.14" />
...

Copy the Starter Kit to your solution

Clone or download the Email Builder Starter Kit repository from GitHub.

Copy the entire Kentico.Xperience.Mjml.StarterKit.Rcl directory from the src folder of the Email Builder Starter Kit repository to your project, for example, into the src folder of the Training guides repository. Remember to include the Starter Kit’s project, Kentico.Xperience.Mjml.StarterKit.Rcl.csproj, in your solution. Your development environment likely has a way to do this in the UI, but it is also possible through the .NET CLI:

CMD

.NET CLI, running from the /src folder of the Training guides repo


dotnet sln TrainingGuides.sln add Kentico.Xperience.Mjml.StarterKit.Rcl\Kentico.Xperience.Mjml.StarterKit.Rcl.csproj

Depending on the configuration of your project and environment, you may need to modify the Starter Kit’s project file. For the Training guides solution, we need to disable default embedded resources to avoid build errors.

XML

Kentico.Xperience.Mjml.StarterKit.Rcl.csproj


...
<PropertyGroup>
    ...
    <EnableDefaultEmbeddedResourceItems>false</EnableDefaultEmbeddedResourceItems>
</PropertyGroup>
...

Map the Starter Kit’s models to your content types

The Starter Kit repository includes widgets that display images and products.

However, there is no way to guarantee that these entities are represented by identical content types in every project, so we need to create a mapping between the models used by the Starter Kit widgets and our project’s content types.

The Starter Kit repository contains example mappers for the Dancing Goat project for reference.

The Starter Kit also includes an email template that utilizes the subject and preview text of the email to which it applies, regardless of the email’s content type. Since these fields are not part of a shared interface, we need to create a data mapper to extract them from each possible content type.

Implement the model mappers

To use the Image and Product widgets, we need to implement the IComponentModelMapper<TModel> interface for the ImageWidgetModel and ProductWidgetModel types. These implementations tell the Starter Kit how to populate the widget models from our content types.

In case we need to update and overwrite the Email Builder Starter Kit files in the future, let’s minimize any changes to that project. Otherwise, we might lose them when overwriting or replacing the folder.

In the TrainingGuides.Web project, create a ~/Features/Shared/EmailBuilder/Mappers folder to hold our implementations.

Image model mapper (simple content type)

The Training guides repo has two reusable content types that primarily represent images: Asset and Gallery image.

However, the Gallery image type simply wraps the Asset type with additional properties. The image file associated with a Gallery image always belongs to the Asset it links, so we don’t need to worry about handling gallery images here.

You can also map multiple content types to a single Starter Kit model, but it is not necessary for this example.

C#

ImageEmailWidgetModelMapper.cs


using Kentico.Xperience.Mjml.StarterKit.Rcl.Mapping;
using Kentico.Xperience.Mjml.StarterKit.Rcl.Widgets;
using TrainingGuides.Web.Features.Shared.Services;

namespace TrainingGuides.Web.Features.Shared.EmailBuilder.Mappers;

public class ImageEmailWidgetModelMapper : IComponentModelMapper<ImageWidgetModel>
{
    private readonly IContentItemRetrieverService contentItemRetrieverService;

    public ImageEmailWidgetModelMapper(
        IContentItemRetrieverService contentItemRetrieverService)
    {
        this.contentItemRetrieverService = contentItemRetrieverService;
    }

    public async Task<ImageWidgetModel> Map(Guid itemGuid, string languageName)
    {
        var asset = await contentItemRetrieverService.RetrieveContentItemByGuid<Asset>(
                itemGuid,
                languageName: languageName);

        if (asset is null)
        {
            return new ImageWidgetModel();
        }

        string imageUrl = asset.AssetFile?.Url ?? string.Empty;

        return new ImageWidgetModel()
        {
            // Populate the image URL and alt text from the retrieved content item's fields
            ImageUrl = imageUrl,
            AltText = asset?.AssetAltText ?? string.Empty
        };
    }
}

Product model mapper (composable content type)

The ProductPage content type in the Training Guides repo is composable. It wraps a reusable Product content type, which itself is made up of other content types like Product feature, Benefit, and Asset. If we compare the Product content type with the properties of the ProductWidgetViewModel from the Starter Kit, we can see that Product and Asset are the only parts of ProductPage that we need.

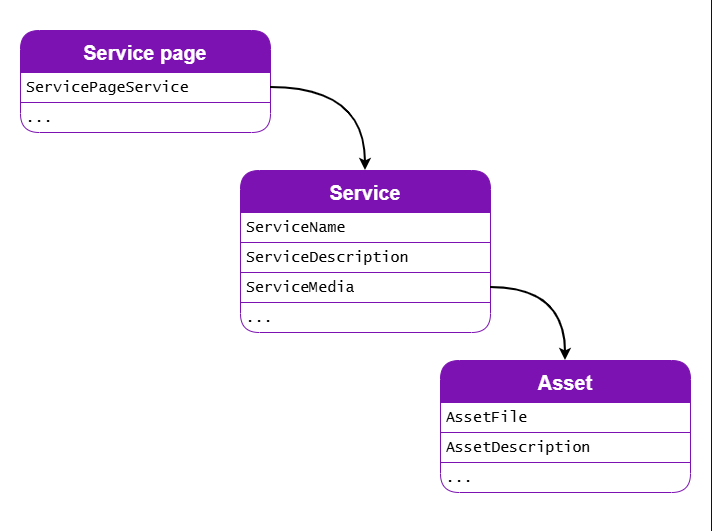

Diagram of content type relationships

When you query the product page, remember to set the depth appropriately, in order to handle this content model.

C#

ProductEmailWidgetModelMapper.cs


using Kentico.Xperience.Mjml.StarterKit.Rcl.Mapping;
using Kentico.Xperience.Mjml.StarterKit.Rcl.Widgets;
using TrainingGuides.Web.Features.Shared.Services;

namespace TrainingGuides.Web.Features.Shared.EmailBuilder.Mappers;

public class ProductEmailWidgetModelMapper : IComponentModelMapper<ProductWidgetModel>
{

    private readonly IContentItemRetrieverService contentItemRetrieverService;

    public ProductEmailWidgetModelMapper(
        IContentItemRetrieverService contentItemRetrieverService)
    {
        this.contentItemRetrieverService = contentItemRetrieverService;
    }

    // Here we set a very specific name for the Guid parameter to clarify that the web page's ContentItemGuid should be used instead of WebPageItemGuid
    public async Task<ProductWidgetModel> Map(Guid webPageItemContentItemGuid, string languageName)
    {
        var page = await contentItemRetrieverService.RetrieveWebPageByContentItemGuid<ProductPage>(
            contentItemGuid: webPageItemContentItemGuid,

            depth: 2,
            languageName: languageName);

        var product = page?.ProductPageProduct.FirstOrDefault();

    // If the product or page is null, return an empty model. Note that the product will always be null if the page is null.
        if (product is null)
        {
            return new ProductWidgetModel();
        }

        string webPageItemUrl = page.GetUrl().AbsoluteUrl;

        var image = product.ProductMedia.FirstOrDefault();
        string imageUrl = image?.AssetFile?.Url ?? string.Empty;

        return new ProductWidgetModel
        {
            Name = product.ProductName,
            Description = product.ProductDescription,
            Url = webPageItemUrl,
            ImageUrl = imageUrl,
            ImageAltText = image?.AssetAltText ?? image?.AssetDescription ?? string.Empty,
        };
    }
}

Create the data mapper

Next, we can move on to the data mapper.

First, define the class as an implementation of IEmailDataMapper, and define default values for the subject and preview text.

Then, set up a private method for each email content type in the project, and call the appropriate one based on the content type name in the email context.

The methods can share logic that falls back to the appropriate default value if a value is null.

If you have more type-specific requirements for the fallbacks, provide more tailored values in the methods for each type.

C#

TrainingGuidesEmailDataMapper.cs


using Kentico.EmailBuilder.Web.Mvc;
using Kentico.Xperience.Mjml.StarterKit.Rcl.Contracts;
using Kentico.Xperience.Mjml.StarterKit.Rcl.Mapping;

namespace TrainingGuides.Web.Features.Shared.EmailBuilder.Mappers;

public class TrainingGuidesEmailDataMapper : IEmailDataMapper
{
    private const string DEFAULT_SUBJECT = "Training Guides";
    private const string DEFAULT_PREVIEW_TEXT = "The latest communication from Training Guides.";
    private readonly IEmailContextAccessor emailContextAccessor;

    public TrainingGuidesEmailDataMapper(IEmailContextAccessor emailContextAccessor)
    {
        this.emailContextAccessor = emailContextAccessor;
    }

    public async Task<IEmailData> Map()
    {
        var emailContext = emailContextAccessor.GetContext();

        return emailContext.ContentTypeName switch
        {
            // Newsletter email content type
            BasicEmail.CONTENT_TYPE_NAME => await MapBasicEmail(emailContext),

            // Promotional email content type
            NatureSpotlightEmail.CONTENT_TYPE_NAME => await MapNatureSpotlightEmail(emailContext),

            // Subscription confirmation email content type
            SubscriptionConfirmationEmail.CONTENT_TYPE_NAME => await MapSubscriptionConfirmationEmail(emailContext),

            // Default fallback for unknown content types
            _ => GetEmailData(DEFAULT_SUBJECT, DEFAULT_PREVIEW_TEXT)
        };
    }

    /// <summary>
    /// Maps a BasicEmail content item to an EmailData object, using its subject and preview text.
    /// </summary>
    /// <param name="emailContext">The email context containing the BasicEmail item.</param>
    /// <returns>EmailData with subject and preview text from the BasicEmail item, or default values if null.</returns>
    private async Task<EmailData> MapBasicEmail(EmailContext emailContext)
    {
        var email = await emailContext.GetEmail<BasicEmail>();

        return GetEmailData(email?.EmailSubject, email?.EmailPreviewText);
    }

    /// <summary>
    /// Maps a NatureSpotlightEmail content item to an EmailData object, using its subject and preview text.
    /// </summary>
    /// <param name="emailContext">The email context containing the NatureSpotlightEmail item.</param>
    /// <returns>EmailData with subject and preview text from the NatureSpotlightEmail item, or default values if null.</returns>
    private async Task<EmailData> MapNatureSpotlightEmail(EmailContext emailContext)
    {
        var email = await emailContext.GetEmail<NatureSpotlightEmail>();

        return GetEmailData(email?.EmailSubject, email?.EmailPreviewText);
    }

    /// <summary>
    /// Maps a SubscriptionConfirmationEmail content item to an EmailData object, using its subject and preview text.
    /// </summary>
    /// <param name="emailContext">The email context containing the SubscriptionConfirmationEmail item.</param>
    /// <returns>EmailData with subject and preview text from the SubscriptionConfirmationEmail item, or default values if null.</returns>
    private async Task<EmailData> MapSubscriptionConfirmationEmail(EmailContext emailContext)
    {
        var email = await emailContext.GetEmail<SubscriptionConfirmationEmail>();

        return GetEmailData(email?.EmailSubject, email?.EmailPreviewText);
    }

    /// <summary>
    /// Returns EmailData with the provided subject and preview text values, reverting to default values if they are not passed or null.
    /// </summary>
    /// <param name="subject">The subject of the email</param>
    /// <param name="previewText">The preview text of the email</param>
    /// <returns>EmailData using the provided subject and preview text</returns>
    private EmailData GetEmailData(string? subject = null, string? previewText = null) =>
        new(subject ?? DEFAULT_SUBJECT, previewText ?? DEFAULT_PREVIEW_TEXT);
}

We recommend handling all of the available email content types, even if they aren’t currently allowed by any templates that use a data mapper.

It is possible to call an IEmailDataMapper implementation from several different places in code, so it’s best to be prepared for potential future changes.

Register the mappers

Now that the mappers are ready, let’s register them with the dependency injection container.

In our example, we can simply add them to the AddTrainingGuidesServices method of the ServiceCollectionExtensions class.

C#

ServiceCollectionExtensions.cs


using Kentico.Xperience.Mjml.StarterKit.Rcl.Mapping;
using Kentico.Xperience.Mjml.StarterKit.Rcl.Widgets;
using TrainingGuides.Web.Features.Shared.EmailBuilder.Mappers;
...
namespace TrainingGuides.Web;

public static class ServiceCollectionExtensions
{
    public static void AddTrainingGuidesServices(this IServiceCollection services)
    {
        ...
        services.AddScoped<IComponentModelMapper<ImageWidgetModel>, ImageEmailWidgetModelMapper>();
        services.AddScoped<IComponentModelMapper<ProductWidgetModel>, ProductEmailWidgetModelMapper>();
        services.AddScoped<IEmailDataMapper, TrainingGuidesEmailDataMapper>();
        ...
    }
    ...
}

The Program.cs file calls this method on startup, registering all of the mappers.
