Expand the template's Page Builder functionality

An editable area is fairly flexible on its own, especially if you have multiple options for sections and lots of widgets, but let’s try to make it even more versatile.

We’ll create a view component that uses template properties to determine the number of columns the template has, and how they are laid out.

Expand the template properties

1. Create a new folder, ~/Features/Shared/OptionProviders/ColumnLayout.
2. Add an enumeration called ColumnLayoutOption, with options for different layouts with one, two, and three columns.
   C#

   ColumnLayoutOption.cs

   Copy


    using System.ComponentModel;

    namespace TrainingGuides.Web.Features.Shared.OptionProviders.ColumnLayout;

    public enum ColumnLayoutOption
    {
        [Description("One column")]
        OneColumn = 0,
        [Description("Two columns")]
        TwoColumnEven = 1,
        [Description("Two columns - Lg/Sm")]
        TwoColumnLgSm = 2,
        [Description("Two columns - Sm/Lg")]
        TwoColumnSmLg = 3,
        [Description("Three columns")]
        ThreeColumnEven = 4,
        [Description("Three columns - Sm/Lg/Sm")]
        ThreeColumnSmLgSm = 5,
    }


3. Return to the ~/Features/Products/ProductPagePageTemplateProperties file and add a new string property to represent the column layout.
   1. Set the property to use a dropdown component, supplied by our new enumeration.
   2. Add a visibility condition to ensure that it only appears if the UsePageBuilder property’s checkbox is true (enabled).
      C#

      ProductPagePageTemplateProperties.cs

      Copy


       ...
       [DropDownComponent(
           Label = "Column layout",
           ExplanationText = "Select the layout of the editable areas in the template.",
           DataProviderType = typeof(DropdownEnumOptionProvider<ColumnLayoutOption>),
           Order = 40)]
       [VisibleIfTrue(nameof(UsePageBuilder))]
       public string ColumnLayout { get; set; } = nameof(ColumnLayoutOption.OneColumn);
       ...

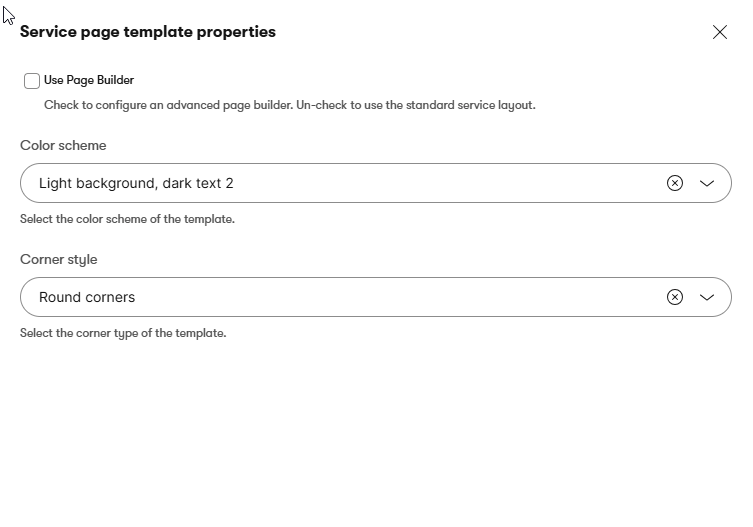

Now, if you sign in to the system, you should see the new checkbox appear in the template properties of any page using this template, but only if the checkbox property to use Page Builder is enabled. At this point, the new property won’t do anything, so let’s change that.

Add supporting entities for the view component

1. If the ~/Features/Shared folder does not contain a ViewComponents folder, create it.
2. Add a new class called PageBuilderColumnViewModel, with properties for the CSS class of the column, its identifier, and an EditableAreaOptions object.
   C#

   PageBuilderColumnViewModel.cs

   Copy


        using Kentico.PageBuilder.Web.Mvc;

        namespace TrainingGuides.Web.Features.Shared.ViewComponents;

        public class PageBuilderColumnViewModel
        {
            public string CssClass { get; set; } = string.Empty;
            public string Identifier { get; set; } = string.Empty;
            public EditableAreaOptions? EditableAreaOptions { get; set; }
        }


3. Add a new ViewComponent called PageBuilderColumnsViewComponent.
4. Add a PageBuilderColumnsViewModel class, containing a collection of PageBuilderColumnViewModel objects.
   C#

   PageBuilderColumnsViewModel.cs

   Copy


        namespace TrainingGuides.Web.Features.Shared.ViewComponents;

        public class PageBuilderColumnsViewModel
        {
            public IEnumerable<PageBuilderColumnViewModel> PageBuilderColumns = Enumerable.Empty<PageBuilderColumnViewModel>();
        }


Implement the view component logic

Now it’s time to implement the view component. Let’s give the template a limit of three columns. It’s rare to see web pages with more than three columns, and if editors need more columns than that, they can use multi-column Page Builder sections within the template columns.

1. Open PageBuilderColumnsViewComponent.cs and add constants to the view component, representing the identifiers used when rendering editable areas, along with bootstrap classes for managing the sizes of the columns.

   Bootstrap is already included in the training guides repository.
   C#

   PageBuilderColumnsViewComponent.cs

   Copy


        ...
        private const string AREA_MAIN = "areaMain";
        private const string AREA_SECONDARY = "areaSecondary";
        private const string AREA_TERTIARY = "areaTertiary";

        private const string COL_XS = "col-md-3";
        private const string COL_S = "col-md-4";
        private const string COL_M = "col-md-6";
        private const string COL_L = "col-md-8";
        private const string COL = "col-md";
        ...


2. Use properties to access the identifier constants.

   This will allow for more complicated logic in the future. Later on in the series, we will modify this view component to work with widget zones for Page Builder sections.
   C#

   PageBuilderColumnsViewComponent.cs

   Copy


        ...

        private string MainIdentifier
        {
            get => AREA_MAIN;
            set { }
        }

        private string SecondaryIdentifier
        {
            get => AREA_SECONDARY;
            set { }
        }

        private string TertiaryIdentifier
        {
            get => AREA_TERTIARY;
            set { }
        }
        ...


3. Add a method that takes a ColumnLayoutOption parameter and uses it to determine the number of columns associated with the option.

   C#

   PageBuilderColumnsViewComponent.cs

   Copy


        ...
        private int GetNumberOfColumns(ColumnLayoutOption columnLayoutOption) => columnLayoutOption switch
        {

            ColumnLayoutOption.TwoColumnEven or
            ColumnLayoutOption.TwoColumnLgSm or
            ColumnLayoutOption.TwoColumnSmLg
            => 2,
            ColumnLayoutOption.ThreeColumnEven or
            ColumnLayoutOption.ThreeColumnSmLgSm
            => 3,
            ColumnLayoutOption.OneColumn or
            _
            => 1
        };
        ...


4. Define a method that returns a PageBuilderColumnViewModel based on the index of the column, the selected ColumnLayoutOption, and an EditableAreaOptions object.

   1. Assign bootstrap column classes according to the sizes dictated in the option’s name.
   2. For layout options where the columns are not the same width, apply the main identifier if it is the largest one.
      C#

      PageBuilderColumnsViewComponent.cs

      Copy


       ...
       private PageBuilderColumnViewModel GetColumn(int columnIndex, ColumnLayoutOption columnLayoutOption, EditableAreaOptions editableAreaOptions)
       {
           string cssClass = string.Empty;
           string columnIdentifier;

           switch (columnLayoutOption)
           {
               case ColumnLayoutOption.TwoColumnEven:
                   //first column is main
                   cssClass = COL_M;
                   columnIdentifier = columnIndex == 0 ? MainIdentifier : SecondaryIdentifier;
                   break;
               case ColumnLayoutOption.TwoColumnLgSm:
                   //first column is main
                   if (columnIndex == 0)
                   {
                       cssClass += COL_L;
                       columnIdentifier = MainIdentifier;
                   }
                   else
                   {
                       cssClass += COL_S;
                       columnIdentifier = SecondaryIdentifier;
                   }
                   break;
               case ColumnLayoutOption.TwoColumnSmLg:
                   //second column is main
                   if (columnIndex == 0)
                   {
                       cssClass += COL_S;
                       columnIdentifier = SecondaryIdentifier;
                   }
                   else
                   {
                       cssClass += COL_L;
                       columnIdentifier = MainIdentifier;
                   }
                   break;
               case ColumnLayoutOption.ThreeColumnEven:
                   //middle column is main
                   cssClass += COL_S;
                   columnIdentifier = columnIndex == 1
                       ? MainIdentifier
                       : columnIndex == 0 ?
                           SecondaryIdentifier : TertiaryIdentifier;
                   break;
               case ColumnLayoutOption.ThreeColumnSmLgSm:
                   //middle column is main
                   if (columnIndex == 1)
                   {
                       cssClass += COL_M;
                       columnIdentifier = MainIdentifier;
                   }
                   else
                   {
                       cssClass += COL_XS;
                       columnIdentifier = columnIndex == 0 ?
                           SecondaryIdentifier : TertiaryIdentifier;
                   }
                   break;
               case ColumnLayoutOption.OneColumn:
               default:
                   //sole column is main
                   columnIdentifier = MainIdentifier;
                   cssClass += COL;
                   break;
           }

           return new PageBuilderColumnViewModel
           {
               CssClass = cssClass,
               Identifier = columnIdentifier,
               EditableAreaOptions = editableAreaOptions
           };
       }
       ...


5. Implement the Invoke method with ColumnLayoutOption and EditableAreaOptions parameters.

   1. Use the GetNumberOfColumns method to construct a for loop. In the loop, assemble a list of PageBuilderColumn view models using the GetColumn method and the current index within the loop.
   2. Use the list to create a PageBuilderColumnsViewModel and pass it to a view at the path ~/Features/Shared/ViewComponents/PageBuilderColumns.cshtml.
      The PageBuilderColumns view doesn’t exist yet, but don’t worry. We’ll add it in the next section.
      C#

      PageBuilderColumnsViewComponent.cs

      Copy


       ...
       public IViewComponentResult Invoke(ColumnLayoutOption columnLayoutOption,
           EditableAreaOptions editableAreaOptions)
       {
           int numberOfColumns = GetNumberOfColumns(columnLayoutOption);
           var columns = new List<PageBuilderColumnViewModel>();
           for (int index = 0; index < numberOfColumns; index++)
           {
               columns.Add(GetColumn(index, columnLayoutOption, editableAreaOptions));
           }

           var model = new PageBuilderColumnsViewModel
           {
               PageBuilderColumns = columns,
           };

           return View("~/Features/Shared/ViewComponents/PageBuilderColumns.cshtml", model);
       }
       ...


    using Kentico.PageBuilder.Web.Mvc;
    using Microsoft.AspNetCore.Mvc;
    using TrainingGuides.Web.Features.Shared.OptionProviders.ColumnLayout;

    namespace TrainingGuides.Web.Features.Shared.ViewComponents;

    public class PageBuilderColumnsViewComponent : ViewComponent
    {
        private const string AREA_MAIN = "areaMain";
        private const string AREA_SECONDARY = "areaSecondary";
        private const string AREA_TERTIARY = "areaTertiary";

        private const string COL_XS = "col-md-3";
        private const string COL_S = "col-md-4";
        private const string COL_M = "col-md-6";
        private const string COL_L = "col-md-8";
        private const string COL = "col-md";

        private string MainIdentifier
        {
            get => AREA_MAIN;
            set { }
        }

        private string SecondaryIdentifier
        {
            get => AREA_SECONDARY;
            set { }
        }

        private string TertiaryIdentifier
        {
            get => AREA_TERTIARY;
            set { }
        }

        public IViewComponentResult Invoke(ColumnLayoutOption columnLayoutOption,
            EditableAreaOptions editableAreaOptions)
        {
            int numberOfColumns = GetNumberOfColumns(columnLayoutOption);
            var columns = new List<PageBuilderColumnViewModel>();
            for (int index = 0; index < numberOfColumns; index++)
            {
                columns.Add(GetColumn(index, columnLayoutOption, editableAreaOptions));
            }

            var model = new PageBuilderColumnsViewModel
            {
                PageBuilderColumns = columns,
            };

            return View("~/Features/Shared/ViewComponents/PageBuilderColumns.cshtml", model);
        }

        private int GetNumberOfColumns(ColumnLayoutOption columnLayoutOption) => columnLayoutOption switch
        {

            ColumnLayoutOption.TwoColumnEven or
            ColumnLayoutOption.TwoColumnLgSm or
            ColumnLayoutOption.TwoColumnSmLg
            => 2,
            ColumnLayoutOption.ThreeColumnEven or
            ColumnLayoutOption.ThreeColumnSmLgSm
            => 3,
            ColumnLayoutOption.OneColumn or
            _
            => 1
        };

        private PageBuilderColumnViewModel GetColumn(int columnIndex, ColumnLayoutOption columnLayoutOption, EditableAreaOptions editableAreaOptions)
        {
            string cssClass = string.Empty;
            string columnIdentifier;

            switch (columnLayoutOption)
            {
                case ColumnLayoutOption.TwoColumnEven:
                    //first column is main
                    cssClass = COL_M;
                    columnIdentifier = columnIndex == 0 ? MainIdentifier : SecondaryIdentifier;
                    break;
                case ColumnLayoutOption.TwoColumnLgSm:
                    //first column is main
                    if (columnIndex == 0)
                    {
                        cssClass += COL_L;
                        columnIdentifier = MainIdentifier;
                    }
                    else
                    {
                        cssClass += COL_S;
                        columnIdentifier = SecondaryIdentifier;
                    }
                    break;
                case ColumnLayoutOption.TwoColumnSmLg:
                    //second column is main
                    if (columnIndex == 0)
                    {
                        cssClass += COL_S;
                        columnIdentifier = SecondaryIdentifier;
                    }
                    else
                    {
                        cssClass += COL_L;
                        columnIdentifier = MainIdentifier;
                    }
                    break;
                case ColumnLayoutOption.ThreeColumnEven:
                    //middle column is main
                    cssClass += COL_S;
                    columnIdentifier = columnIndex == 1
                        ? MainIdentifier
                        : columnIndex == 0 ?
                            SecondaryIdentifier : TertiaryIdentifier;
                    break;
                case ColumnLayoutOption.ThreeColumnSmLgSm:
                    //middle column is main
                    if (columnIndex == 1)
                    {
                        cssClass += COL_M;
                        columnIdentifier = MainIdentifier;
                    }
                    else
                    {
                        cssClass += COL_XS;
                        columnIdentifier = columnIndex == 0 ?
                            SecondaryIdentifier : TertiaryIdentifier;
                    }
                    break;
                case ColumnLayoutOption.OneColumn:
                default:
                    //sole column is main
                    columnIdentifier = MainIdentifier;
                    cssClass += COL;
                    break;
            }

            return new PageBuilderColumnViewModel
            {
                CssClass = cssClass,
                Identifier = columnIdentifier,
                EditableAreaOptions = editableAreaOptions
            };
        }
    }


Create the component view

1. Add a new file named PageBuilderColumns.cshtml to the ~/Features/Shared/ViewComponents folder.
2. Set the model to PageBuilderColumnsViewModel, and nest div elements with the container and row classes.
   cshtml

   PageBuilderColumns.cshtml

   Copy


    @using TrainingGuides.Web.Features.Shared.ViewComponents

    @model PageBuilderColumnsViewModel

    <div class="container tg-pb-col">
        <div class="row">

        </div>
    </div>


3. Use a foreach loop to iterate through the model’s PageBuilderColumns collection.
4. Within the loop, add a div styled with the column’s cssClass property.
   cshtml

   PageBuilderColumns.cshtml

   Copy


        ...
        @foreach (var column in Model.PageBuilderColumns)
        {
            <div class="@column.CssClass">

            </div>
        }
        ...


5. Render an editable area with the editable-area tag helper from Xperience.
   1. Set the area-options attribute to the column’s EditableAreaOptions property.
      cshtml

      PageBuilderColumns.cshtml

      Copy


       ...
           <editable-area area-identifier="@column.Identifier" area-options="column.EditableAreaOptions" />
       ...


Now, the view should look like this:

    @using TrainingGuides.Web.Features.Shared.ViewComponents

    @model PageBuilderColumnsViewModel
    <div class="container tg-pb-col">
        <div class="row">
            @foreach (var column in Model.PageBuilderColumns)
            {
                <div class="@column.CssClass">
                        <editable-area area-identifier="@column.Identifier" area-options="column.EditableAreaOptions" />
                </div>
            }
        </div>
    </div>

Use the view component in the template

Now the view component is finished. Let’s add it to the template view so we can test our progress.

1. Return to the ~/Features/Shared/Products/ProductPagePageTemplate.cshtml file.
2. Remove the editable-area tag from the view, and replace it with the new view component.
   cshtml

   ProductPagePageTemplate.cshtml

   Copy


        ...
        @if(Model.Properties.UsePageBuilder)
        {
            <vc:page-builder-columns column-layout-option="@columnLayout" editable-area-options="@new EditableAreaOptions()" />
        }
        ...


3. In the razor code block that sets the templateModel variable, default the column layout to one column if the model’s ColumnLayout property can’t be parsed.
   cshtml

   ProductPagePageTemplate.cshtml

   Copy


        @{
            var templateModel = Model.GetTemplateModel<ProductPageViewModel>();
            if (!Enum.TryParse(Model.Properties.ColumnLayout, out ColumnLayoutOption columnLayout))
            {
                columnLayout = ColumnLayoutOption.OneColumn;
            }
        }


    @using Microsoft.AspNetCore.Html
    @using System.Globalization
    @using TrainingGuides.Web.Features.Products
    @using TrainingGuides.Web.Features.Products.Models
    @using TrainingGuides.Web.Features.Shared.OptionProviders.ColumnLayout
    @using TrainingGuides.Web.Features.Shared.OptionProviders.ColorScheme
    @using TrainingGuides.Web.Features.Shared.ViewComponents

    @model TemplateViewModel<ProductPagePageTemplateProperties>

    @{
        var templateModel = Model.GetTemplateModel<ProductPageViewModel>();
        if (!Enum.TryParse(Model.Properties.ColumnLayout, out ColumnLayoutOption columnLayout))
        {
            columnLayout = ColumnLayoutOption.OneColumn;
        }
    }
    <tg-component-style color-scheme="@Model.Properties.ColorScheme" corner-style="@Model.Properties.CornerStyle">
        @if(Model.Properties.UsePageBuilder)
        {
            <vc:page-builder-columns column-layout-option="@columnLayout" editable-area-options="@new EditableAreaOptions()" />
        }
        else
        {
            <div class="tg-padding-big">
                <div class="row">
                    <div class="col align-self-center">
                        <h3>@templateModel.NameHtml</h3>
                        <p>@templateModel.ShortDescriptionHtml</p>
                    </div>

                    <tg-styled-image src="@templateModel.Media.FirstOrDefault()?.FilePath" alt="@templateModel.Media.FirstOrDefault()?.Description" corner-style="@Model.Properties.CornerStyle" class="col c-product-img object-fit-cover" />
                </div>
                <div class="row">
                    <div class="c-pricelist">
                        <div class="col">
                            <tg-component-style color-scheme="@ColorSchemeOption.Light1" corner-style="@Model.Properties.CornerStyle"  class="c-table">
                                @foreach (var feature in templateModel.Features)
                                {
                                    <div class="c-table_row">
                                        <div class="c-table_cell"><div class="c-table_cell">@feature.LabelHtml</div></div>
                                        <div class="c-table_cell text-end">
                                            <tg-product-feature-value feature="@feature"/>
                                        </div>
                                    </div>
                                }
                            </tg-component-style>
                        </div>
                    </div>
                </div>
            </div>
        }
    </tg-component-style>
