Listing UI page template

Listing pages facilitate object type (*Info class) listing.

All listing pages must inherit from the ListingPage base class. Override the ObjectType property to specify which objects are listed.

C#Example

using CMS.Membership;

using Kentico.Xperience.Admin.Base;

public class UserObjectListing : ListingPage
{
    // Set to the object type of the object you wish to have listed
    protected override string ObjectType => UserInfo.OBJECT_TYPE;
}

The bulk of listing page configuration is done within an override of the ConfigurePage method.

C#ConfigurePage method override

using System.Threading.Tasks;

using Kentico.Xperience.Admin.Base;

public class UserObjectListing : ListingPage
{
    // ...

    public override Task ConfigurePage()
    {
        // Listing page configuration code

        return base.ConfigurePage();
    }
}

The individual configuration areas are described on the following pages:

Display and format listing data – the columns of the grid and the elements displayed around it.
Add listing actions – commands invoked from rows, from the page header, and over multiple selected items.
Filter listing data – restricting the retrieved data and filters available to users.
Export listing data – downloading the listed data as a CSV file.

Reference - PageConfiguration property

The following table provides a reference of template configuration options available for listing pages via the PageConfiguration property.

Property	Type	Description
Caption	string	The page's title.

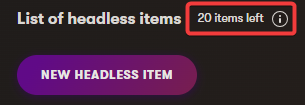

SubcaptionComponent	ISubcaptionComponent	A component rendered next to the listing page caption. See Add header subcaption.

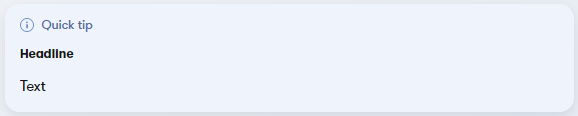

Callouts	List<CalloutConfiguration>	Configures an optional message box element that can be displayed above the listing. See Add callouts.
ColumnConfigurations	IList<ColumnConfiguration>	See Format displayed data.
ExportConfiguration	ListingExportConfiguration	Configures the listing's data export. null by default, which means the export is disabled. Set via the `EnableExport` extension method. See Enable data export.
FilterFormModel	object	An instance of the model class that defines the filter UI for the listing. See Add a listing filter.
HeaderActions	IList<ActionConfiguration>	Actions available from the table header. See Add header and item actions.

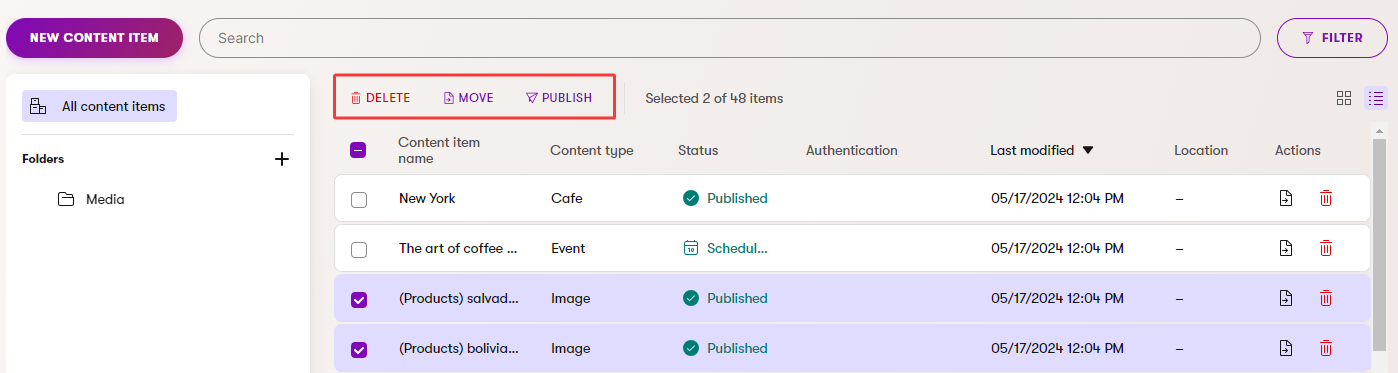

MassActions	IList<ActionConfiguration>	Actions available when selecting more than one item in the listing. See Add mass actions.
MaxVisibleRowActions	int	Determines the maximum number of table actions displayed for each item. Additional actions are hidden behind an expandable menu.
PageSizes	IEnumerable<int>	Available page sizes for the listing.
QueryModifiers	IList<QueryModifier>	Collection of modifications to the displayed data. See Modify loaded data.
RowAction	ActionConfiguration	Action that occurs when a user clicks on a row in the listing. Set via the `AddEditRowAction` method. See Add row actions.
RowActionIconPlaceholders	int?	Can be used to customize the width of the listing's Actions column by overriding the number of action icon placeholders. By default this property is null, which means that the width of the Actions column is calculated based on the number of registered actions.
TableActions	IList<ActionConfiguration>	Actions available for each item in the listing. See Add header and item actions.

Register listing pages

Listing pages need to specify the TemplateNames.LISTING client template during registration.

C#Example listing page registration

using Kentico.Xperience.Admin.Base;

[assembly: UIPage(
    parentType: typeof(UsersApplication),
    slug: "list",
    uiPageType: typeof(UserObjectListing),
    name: "Users",
    templateName: TemplateNames.LISTING,
    order: 0)]

Client template – LISTING

Listing pages must use the LISTING client template.

The template contains the following default page commands:

LoadData – refreshes the data on the page.
Delete – deletes the item with the specified int identifier.
ExportListingData – builds the file downloaded by the Export action. Only available when the export is enabled for the page.

using CMS.Membership; using Kentico.Xperience.Admin.Base; public class UserObjectListing : ListingPage { // Set to the object type of the object you wish to have listed protected override string ObjectType => UserInfo.OBJECT_TYPE; }

using System.Threading.Tasks; using Kentico.Xperience.Admin.Base; public class UserObjectListing : ListingPage { // ... public override Task ConfigurePage() { // Listing page configuration code return base.ConfigurePage(); } }

Reference - PageConfiguration property

The following table provides a reference of template configuration options available for listing pages via the PageConfiguration property.

Property	Type	Description
Caption	string	The page's title.
SubcaptionComponent	ISubcaptionComponent	A component rendered next to the listing page caption. See Add header subcaption.
Callouts	List<CalloutConfiguration>	Configures an optional message box element that can be displayed above the listing. See Add callouts.
ColumnConfigurations	IList<ColumnConfiguration>	See Format displayed data.
ExportConfiguration	ListingExportConfiguration	Configures the listing's data export. null by default, which means the export is disabled. Set via the `EnableExport` extension method. See Enable data export.
FilterFormModel	object	An instance of the model class that defines the filter UI for the listing. See Add a listing filter.
HeaderActions	IList<ActionConfiguration>	Actions available from the table header. See Add header and item actions.
MassActions	IList<ActionConfiguration>	Actions available when selecting more than one item in the listing. See Add mass actions.
MaxVisibleRowActions	int	Determines the maximum number of table actions displayed for each item. Additional actions are hidden behind an expandable menu.
PageSizes	IEnumerable<int>	Available page sizes for the listing.
QueryModifiers	IList<QueryModifier>	Collection of modifications to the displayed data. See Modify loaded data.
RowAction	ActionConfiguration	Action that occurs when a user clicks on a row in the listing. Set via the `AddEditRowAction` method. See Add row actions.
RowActionIconPlaceholders	int?	Can be used to customize the width of the listing's Actions column by overriding the number of action icon placeholders. By default this property is null, which means that the width of the Actions column is calculated based on the number of registered actions.
TableActions	IList<ActionConfiguration>	Actions available for each item in the listing. See Add header and item actions.

Listing pages need to specify the TemplateNames.LISTING client template during registration.

C#Example listing page registration

using Kentico.Xperience.Admin.Base;

[assembly: UIPage(
    parentType: typeof(UsersApplication),
    slug: "list",
    uiPageType: typeof(UserObjectListing),
    name: "Users",
    templateName: TemplateNames.LISTING,
    order: 0)]

Client template – LISTING

Listing pages must use the LISTING client template.

The template contains the following default page commands:

LoadData – refreshes the data on the page.

Delete – deletes the item with the specified int identifier.

ExportListingData – builds the file downloaded by the Export action. Only available when the export is enabled for the page.
