Administration - External authentication

The Xperience by Kentico administration interface supports authentication via external identity and authentication providers. Identity providers are used to centralize user and role management across multiple services and to provide a unified sign-in experience for particular sets of users – often referred to as single sign-on (SSO).

You can use any identity provider that best fits your needs, be it Microsoft Entra ID⁠ (opens in a new tab) (formerly known as Azure Active Directory), Auth0⁠ (opens in a new tab), Okta⁠ (opens in a new tab), Duo⁠ (opens in a new tab) or any other platform that is OAuth/OIDC-compliant.

This page provides detailed instructions for the set up of Entra ID, Auth0 and Okta, though other providers can be set up in a similar manner. Refer to the documentation of a particular provider to learn about the specific details for setting up the given integration.

Microsoft Entra ID

Entra ID⁠ (opens in a new tab) is an identity service that provides single sign-on, multifactor authentication, and conditional access. You can configure Xperience to use Entra ID with the OpenID Connect (OIDC)⁠ (opens in a new tab) protocol for SSO purposes.

The following instructions show how to set up Entra ID authentication using the authorization code token grant flow⁠ (opens in a new tab).

First, register your application in your Entra ID tenant:

1. Open your Entra ID tenant in Microsoft Entra⁠ (opens in a new tab).
2. Switch to Applications → App registrations and register your Xperience application⁠ (opens in a new tab).
3. Add a sign-in redirect URI⁠ (opens in a new tab) that specifies where Entra ID redirects users after successful authentication.
   • This is the URL that Entra ID sends information to when a user signs in. This route is called a callback route or redirect URI. The callback route isn't seen by the user, and it's not the user's final destination. It's just one step in the authentication redirect flow. The redirect URI must be a free route in the application. For example: https://<domain>/admin-oidc
4. Add credentials (certificate or secret) for your application:
   1. Navigate to your app registration in Entra ID and switch to the Certificates & secrets tab.
   2. Choose one of the following:
      • Upload a certificate (Microsoft recommends certificates for production applications). See Using certificates⁠ (opens in a new tab) for more information.
      • Add a client secret.
5. Add claims to ensure the token obtained by the Xperience application contains values that can be mapped to user objects representing the Entra ID user in Xperience:
   1. Switch to the Token configuration tab.
   2. Select Add optional claim.
   3. Choose the ID token type and select the following fields:
      1. email – mapped to the user's Email
      2. family_name – mapped to the user's Last name
      3. given_name – mapped to the user's First name
      4. preferred_username – mapped to the user's Username
   4. Select Add. For more information about claims and their mapping to Xperience objects, see Claims mapping and transformations.

The application is now registered and configured in Entra ID. Now, you need to connect your Xperience application to the Entra ID application registration:

1. Install the Microsoft.Identity.Web NuGet package to your project.

2. Edit the Program.cs application configuration class. The following configuration authenticates with a certificate, which Microsoft recommends for production applications. To use a client secret instead, see the note below.

   C#Entra ID configuration

   Copy

   using System.Security.Claims;

   using Microsoft.AspNetCore.Authentication.Cookies;
   using Microsoft.AspNetCore.Authentication.OpenIdConnect;
   using Microsoft.AspNetCore.Builder;
   using Microsoft.AspNetCore.Http;
   using Microsoft.Identity.Web;

   using Kentico.Membership;

   ...

   var builder = WebApplication.CreateBuilder(args);

   ...

   builder.Services.AddAdminExternalAuthenticationProvider(
       builder => builder.AddMicrosoftIdentityWebApp(options =>
       {
           // Your Entra ID tenant
           options.Domain = "";
           // Your tenant ID - found on the Overview tab of your application registration in Entra ID
           options.TenantId = "ffffffff-ffff-ffff-fff-ffffffffffff";
           // Your application ID - found on the Overview tab of your application registration in Entra ID
           options.ClientId = "ffffffff-ffff-ffff-fff-ffffffffffff";
           // The authorization server to use (login.microsoftonline.com unless using a custom one)
           options.Instance = "https://login.microsoftonline.com/";
           // The callback path must match the redirect URI specified when configuring the application in Entra ID
           options.CallbackPath = new PathString("/admin-oidc");
           // Sets the response type for the Authorization Code Flow
           options.ResponseType = OpenIdConnectResponseType.Code;

           // Add a certificate to prove your application's identity
           options.ClientCertificates = new List<CertificateDescription>
           {
               // Replace the examples of certificate descriptions with your own

               // Certificate from Azure Key Vault
               CertificateDescription.FromKeyVault("https://keyvault-name.vault.azure.net/", "certificate-name"),
               // Certificate from a local file
              CertificateDescription.FromPath("path_to_certificate.pfx","certificate_password")
           };
       })
       // Required for certificate credentials
       .EnableTokenAcquisitionToCallDownstreamApi()
       .AddInMemoryTokenCaches(),
       options =>
       {
           // Sets cookies as the sign in scheme
           options.SignInScheme = CookieAuthenticationDefaults.AuthenticationScheme;
           // Sets OIDC as the authentication method
           options.AuthenticateScheme = OpenIdConnectDefaults.AuthenticationScheme;
       }
   );

   The EnableTokenAcquisitionToCallDownstreamApi and AddInMemoryTokenCaches calls are required when authenticating with certificate credentials⁠ (opens in a new tab). Without them, sign-in fails with the error AADSTS7000218⁠ (opens in a new tab). For more information about this configuration, see Microsoft's web app that calls web APIs⁠ (opens in a new tab) documentation.

   Authenticating with a client secret

   A client secret is simpler to set up but less secure than a certificate. The secret is shared and can be leaked, prefer a certificate for production deployments. If you authenticate with a client secret instead, set options.ClientSecret and omit the EnableTokenAcquisitionToCallDownstreamApi and AddInMemoryTokenCaches calls, which the client secret flow does not require:

   C#Client secret credentials

   Copy

   builder.Services.AddAdminExternalAuthenticationProvider(
       builder => builder.AddMicrosoftIdentityWebApp(options =>
       {
           // ...
           // Secret ID generated for a client secret
           options.ClientSecret = "ffffffff-ffff-ffff-fff-ffffffffffff";
       }),
       // ...
   );

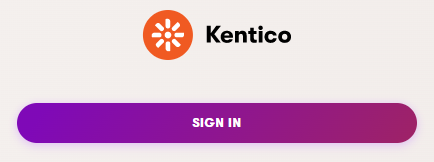

The Xperience application is now set up to use Entra ID. If you run the application and navigate to the admin UI sign-in page, the external provider is now the only available sign-in method.

Selecting Sign in redirects users to the Entra ID authorization server, where they can authenticate using their existing credentials. If you wish to maintain the default forms authentication in parallel with external authentication, see Sign-in page behavior.

When a user signs in for the first time, a corresponding user object is created in the system, and the application maps claims from the received token to the corresponding properties of the user object (First name, Last name, Username, and Email). The system is, by default, configured to only run this mapping once when a user first signs in and the object that represents them is created. To change the synchronization frequency for this data, see User data synchronization frequency.

Additionally, newly created users don't have any assigned roles and therefore lack the permissions to access and work with applications in the admin UI. To manage role assignments for Entra ID users, you have the following options:

• Synchronize role assignments from Entra ID to Xperience
• Manually assign roles to Entra ID users (for example, using existing accounts or via event handlers)

Synchronize roles

Xperience supports the synchronization of role assignments from Entra ID. However, only assignments to roles that already exist in the system are synchronized. The system doesn't automatically create new roles based on data received from Entra ID.

To enable the synchronization of role assignments from Entra ID:

1. Configure user-role assignments⁠ (opens in a new tab) for the application in Entra ID.
2. Create the desired roles in Xperience and define their permissions.

   • The role Code name must match the Value parameter (what is sent as part of the "roles" claim) specified for the corresponding Entra ID App role⁠ (opens in a new tab). For example, for an App role with the following properties:

     • Display name: Content editors
     • Allowed member types: Users/Groups
     • Value: contenteditors
     • Description: Members of the content editing team for our Xperience projects.the Xperience application must contain a role with the contenteditors code name. Otherwise, the role assignment will not synchronize.

   • See Role management to learn how to create roles and assign permissions in the system.

3. Configure user data synchronization frequency to either FirstLogin or Always, depending on your requirements, to ensure role assignments are propagated to Xperience. See User data synchronization frequency.

When a user signs in, the system maps their Entra ID role assignments to roles defined in Xperience.

Grant the Administrator role via Entra ID

The Administrator role is a default system role that cannot be modified or deleted. The system requires at least one user with this role assigned to exist in the system at all times. If you need to ensure the role can be granted to users via Entra ID (for example, if you wish to discontinue the default administrator account):

1. Create a new Entra ID App role⁠ (opens in a new tab) with the following properties:
   1. Display name: Xperience administrator
   2. Allowed member types: Users/Groups
   3. Value: administrator
   4. Description: Role granting the highest privilege for the Xperience administration interface
2. Add the desired users⁠ (opens in a new tab) to the role.
   • If you are making this change after Entra ID has already been set up (and users may, as a result, already have accounts in Xperience), make sure to change the user data synchronization frequency to Always to ensure the role is granted to users the next time they sign in.

You can now grant the administrator role via Entra ID.

Security considerations

See General security considerations for an overview of recommended security practices related to external authentication provider configuration and management.

For security practices related to Entra ID specifically, refer to Identity management best practices⁠ (opens in a new tab) and other Microsoft sources.

Auth0

Auth0⁠ (opens in a new tab) is an authentication and authorization platform that provides identity management solutions for applications. It allows developers to authenticate, authorize, and secure access for their applications and APIs by implementing various authentication methods such as social login, single sign-on, multi-factor authentication, and more. Auth0 also provides features for user management, token generation, and security.

You can configure Xperience to use Auth0 with the OpenID Connect (OIDC)⁠ (opens in a new tab) protocol for SSO purposes.

First, create a new application for your Xperience project in Auth0:

1. Open your Auth0 management dashboard.
2. Switch to Applications and register your Xperience application⁠ (opens in a new tab) with the Regular web application application type.
3. Open the application configuration and add a callback URL that specifies where Auth0 redirects users after successful authentication.
   • This is the URL that Auth0 sends information to when a user signs in. This route is called a callback route or redirect URI. The callback route isn't seen by the user, and it's not the user's final destination. It's just one step in the authentication redirect flow. The redirect URI must be a free route in the application. For example: https://<domain>/admin-oidc

The application is registered and configured in Auth0. Now, you need to connect your Xperience application to the Auth0 application registration:

1. Install the Microsoft.Identity.Web NuGet package to your project.

2. Edit the Program.cs application configuration class and add the following:

   C#Auth0 configuration

   Copy

   using System.Security.Claims;

   using Microsoft.AspNetCore.Authentication.Cookies;
   using Microsoft.AspNetCore.Authentication.OpenIdConnect;
   using Microsoft.AspNetCore.Builder;
   using Microsoft.AspNetCore.Http;
   using Microsoft.Identity.Web;

   using Kentico.Membership;

   ...

   var builder = WebApplication.CreateBuilder(args);

   ...

   builder.Services.AddAdminExternalAuthenticationProvider(authBuilder =>
       authBuilder.AddOpenIdConnect(options =>
       {
               // Authorization server URL
               options.Authority = "https://<authority>.auth0.com";
               // The client identifier assigned to your Auth0 application
               options.ClientId = "<client identifier>";
               // The secret generated for your Auth0 application
               options.ClientSecret = "<client secret>";
               options.ClaimsIssuer = "Auth0";
               // The callback path must match the callback URL specified when configuring the application in Auth0
               options.CallbackPath = new PathString("/admin-oidc");

               // Requests email claims to be included in ID tokens received by the application
               // Required to synchronize user email addresses
               options.Scope.Add("email");

               options.ResponseType = OpenIdConnectResponseType.CodeIdToken;
               options.SignInScheme = AdminIdentityConstants.EXTERNAL_SCHEME;
       }),
       options =>
       {
           // Sets the authentication scheme to OIDC
           options.AuthenticateScheme = OpenIdConnectDefaults.AuthenticationScheme;

           /* When creating the user account in Xperience, the system is by default configured
              to read the UserName value from the "preferred_username" claim. However, Auth0 does not
              by default send the "preferred_username" claim as part of the user information.

              This configuration uses the value stored under "nickname" as the username instead.
              This is only for illustration and you can use any other claim you prefer, but note that
              all users must have the value populated (the field is required for user creation).
              For more information, see the 'Claims mapping and transformations' section on this page. */
           options.UserNameClaimName = "nickname";
       }
   );

   Storing application secrets

   We do not recommend storing application secrets (ClientSecret property) directly in code or application configuration files (e.g., appsettings.json). See Securely store application secrets for recommendations.

The Xperience application is now set up. If you run the application and navigate to the admin UI sign-in page, the external provider is now the only available sign-in method.

Selecting Sign in redirects users to the Auth0 authorization server, where they can authenticate using their existing credentials. If you wish to maintain the default forms authentication in parallel with external authentication, see Sign-in page behavior.

When a user signs in for the first time, a corresponding user object is created in the system and the application maps claims from the received ID token to the corresponding properties of the user object (First name, Last name, Username, and Email). By default, the system is configured to only run this mapping once when the user first signs in and the object that represents them is created. To change the synchronization frequency for this data, see User data synchronization frequency.

Additionally, newly created users don't have assigned roles and therefore lack the permissions to access and work with applications in the admin UI. To manage role assignments for Auth0 users, you have the following options:

• Synchronize role assignments from Auth0 to Xperience
• Manually assign roles to external users (for example, using existing accounts or via event handlers)

Synchronize roles

Xperience supports the synchronization of role assignments from Auth0. However, only assignments to roles that already exist in the system are synchronized. The system doesn't automatically create new roles based on data received from the external provider.

To enable the synchronization of role assignments from Auth0:

1. Configure user-role assignments⁠ (opens in a new tab) for the application in Auth0.

2. Create the roles to map onto in Xperience and define their permissions.

   • The role Code name must match the Name of the corresponding role in Auth0. For example, for an Auth0 role with the following properties:

     • Name: Acme.ContentEditors
     • Description: Members of the content editing team for our Xperience projects.the Xperience application must contain a role with the Acme.ContentEditors code name. Otherwise, the role assignment will not be synchronized.

   • See Role management to learn how to create roles and assign permissions in the system.

3. Configure user data synchronization frequency to either FirstLogin or Always, depending on your requirements, to ensure role assignments are propagated to Xperience. See User data synchronization frequency.

4. Add the groups scope to your Auth0 configuration:

   C#

   Copy

   authBuilder.AddOpenIdConnect("OpenIdConnect", options =>
   {
       // Authorization server URL
       options.Authority = "https://<auhority>.auth0.com";
       options.ClientId = "";
       options.ClientSecret = "";
       options.ClaimsIssuer = "Auth0";
       options.CallbackPath = new PathString("/admin-oidc");

       // Requests email claims to be included in ID tokens received by the application
       // Required to synchronize user email addresses
       options.Scope.Add("email");

       // Requests role claims to be included in ID tokens received by the application
       options.Scope.Add("groups");

       options.ResponseType = OpenIdConnectResponseType.CodeIdToken;
       options.SignInScheme = AdminIdentityConstants.EXTERNAL_SCHEME;
   }),

Now, when a user signs in, the system maps their Auth0 roles assignments to roles defined in Xperience.

Grant the Administrator role via Auth0

The Administrator role is a default system role that cannot be modified or deleted. The system requires at least one user with this role assigned to exist in the system at all times. If you need to ensure the role can be granted to users via Auth0 (for example, if you wish to discontinue the default administrator account):

1. Create a new Auth0 role with the following properties:
   1. Name: Administrator
   2. Description: Role granting the highest privilege for the Xperience administration interface
2. Add the desired users to the role.
   • If you are making this change after Auth0 has already been set up (and users may, as a result, already have accounts in Xperience), make sure to change the user data synchronization frequency to Always to ensure the role is granted to users the next time they sign in.

You can now grant the administrator role via Auth0.

Security considerations

See General security considerations for an overview of recommended security practices related to external authentication provider configuration and management.

For security practices related to Auth0 specifically, refer to the official provider documentation, such as General usage and operations best practices⁠ (opens in a new tab).

Okta

Okta⁠ (opens in a new tab) is a cloud-based identity and access management platform that provides a secure way for organizations to manage and authenticate users for their applications and services. It offers a range of features, including single sign-on, multi-factor authentication, user provisioning, API access management, and more.

You can configure Xperience to use Okta with the OpenID Connect (OIDC)⁠ (opens in a new tab) protocol for SSO purposes. First, register your application in Okta:

1. Open the Okta dashboard⁠ (opens in a new tab).
2. Add an app integration⁠ (opens in a new tab) with the following configuration:
   1. Sign-in method: OpenID Connect (OIDC)
   2. Application type: Web Application
   3. Grant type – select the following:
      1. Authorization code
      2. Implicit (hybrid)
3. Add a sign-in redirect URI⁠ (opens in a new tab) that specifies where Okta redirects users after successful authentication.
   • This is the URL that Okta sends information to when a user signs in. This route is called a callback route or redirect URI. The callback route isn't seen by the user, and it's not the user's final destination. It's just one step in the authentication redirect flow. The redirect URI must be a free route in the application. For example: https://<domain>/admin-oidc

The application is registered and configured in Okta. Now, you need to connect your Xperience application to the Okta application registration:

1. Install the Microsoft.Identity.Web NuGet package to your project.

2. Edit the Program.cs application configuration class and add the following:

   C#Okta configuration

   Copy

   using System.Security.Claims;

   using Microsoft.AspNetCore.Authentication.Cookies;
   using Microsoft.AspNetCore.Authentication.OpenIdConnect;
   using Microsoft.AspNetCore.Builder;
   using Microsoft.AspNetCore.Http;
   using Microsoft.Identity.Web;

   using Kentico.Membership;

   ...

   var builder = WebApplication.CreateBuilder(args);

   ...

   builder.Services.AddAdminExternalAuthenticationProvider(authBuilder =>
       authBuilder.AddOpenIdConnect(options =>
       {
           options.Authority = "https://<authority>.okta.com";
           // The client identifier assigned to your Auth0 application
           options.ClientId = "<client identifier>";
           // The secret generated for your Auth0 application
           options.ClientSecret = "<client secret>";
           options.ClaimsIssuer = "Okta";
           options.CallbackPath = new PathString("/admin-oidc");

           // Requests email claims to be included in ID tokens received by the application
           // Required to synchronize user email addresses
           options.Scope.Add("email");

           options.ResponseType = OpenIdConnectResponseType.CodeIdToken;
           options.SignInScheme = AdminIdentityConstants.EXTERNAL_SCHEME;
       }),
       options =>
       {
           options.AuthenticateScheme = OpenIdConnectDefaults.AuthenticationScheme;
       }
   );

   Storing application secrets

   We do not recommend storing application secrets (ClientSecret property) directly in code or application configuration files (e.g., appsettings.json). See Securely store application secrets for recommendations.

The Xperience application is now set up to use Okta. If you run the application and navigate to the admin UI sign-in page, the external provider is now the only available sign-in method.

Selecting Sign in redirects users to the Okta authorization server, where they can authenticate using their existing credentials. If you wish to maintain the default forms authentication in parallel with external authentication, see Sign-in page behavior.

When a user signs in for the first time, a corresponding user object is created in the system, and the application maps claims from the received ID token to the corresponding properties of the user object (First name, Last name, Username, and Email). The system is, by default, configured to only run this mapping once when the user first signs in and the object that represents them is created. To change the synchronization frequency for this data, see User data synchronization frequency.

Additionally, newly created users don't have assigned roles and therefore lack the permissions to access and work with applications in the admin UI. To manage role assignments for Okta users, you have the following options:

• Synchronize role assignments from Okta to Xperience
• Manually assign roles to Okta users (for example, using existing accounts or via event handlers)

Synchronize roles

Xperience supports the synchronization of role assignments from Okta. However, only assignments to roles that already exist in the system are synchronized. The system doesn't automatically create new roles based on data received from Okta.

To enable the synchronization of role assignments from Okta, first prepare your Xperience instance:

1. Create the roles to map onto in Xperience and define their permissions.

   • See Role management to learn how to create roles and assign permissions in the system.
   • Note the code name of each created role. You will need to use it in Okta.

2. Map role claims by adding the following line to the external provider registration in Program.cs: options.RoleClaimName = "XperienceAdminRoles"

3. Configure user data synchronization frequency to either FirstLogin or Always, to ensure role assignments are propagated to Xperience. See User data synchronization frequency for details.

   C#Map role claims and set synchronization frequency

   Copy

   builder.Services.AddAdminExternalAuthenticationProvider(authBuilder =>
       authBuilder.AddOpenIdConnect(options =>
       {
           // Okta configuration
       }),
       // Configures Xperience behavior with relation to the external authentication provider
       options =>
       {
           // Specifies that role claims are available under 'XperienceAdminRoles'
           options.RoleClaimName = "XperienceAdminRoles";

           // Xperience synchronizes the user account with data from the external provider every time a user signs in
           options.UserSynchronizationFrequency = UserSynchronizationFrequency.Always;
       }
   );

Next, switch to Okta and prepare the Xperience application registration for role synchronization:

1. Add a a new custom attribute to your Xperience application's user profile. You will later populate this attribute with the collection of roles that you want users assigned to a particular Okta group to have in Xperience:
   1. From the Okta dashboard, go to Directory → Profile editor and edit the user profile belonging to your Xperience application registration.
   2. Add a user profile attribute⁠ (opens in a new tab) with the following properties:
      1. Data type: string array
      2. Display name: XperienceAdminRoles – the display name must match the claim name mapped to RoleClaimName in Program.cs
      3. Mutability: READ_WRITE
      4. Group Priority: Combine values across groups
2. Add users to groups⁠ (opens in a new tab) in Okta.
3. Open the Xperience application registration in Okta, switch to the Assignments tab, and under Filters select Groups.
   1. Edit (blue pencil icon) each group and add the code names of roles you want members of the group to have in Xperience using the custom XperienceAdminRoles attribute.

   2. When users sign-in via Okta, Xperience assigns the set of roles specified for their group. See the following diagram for an example scenario:

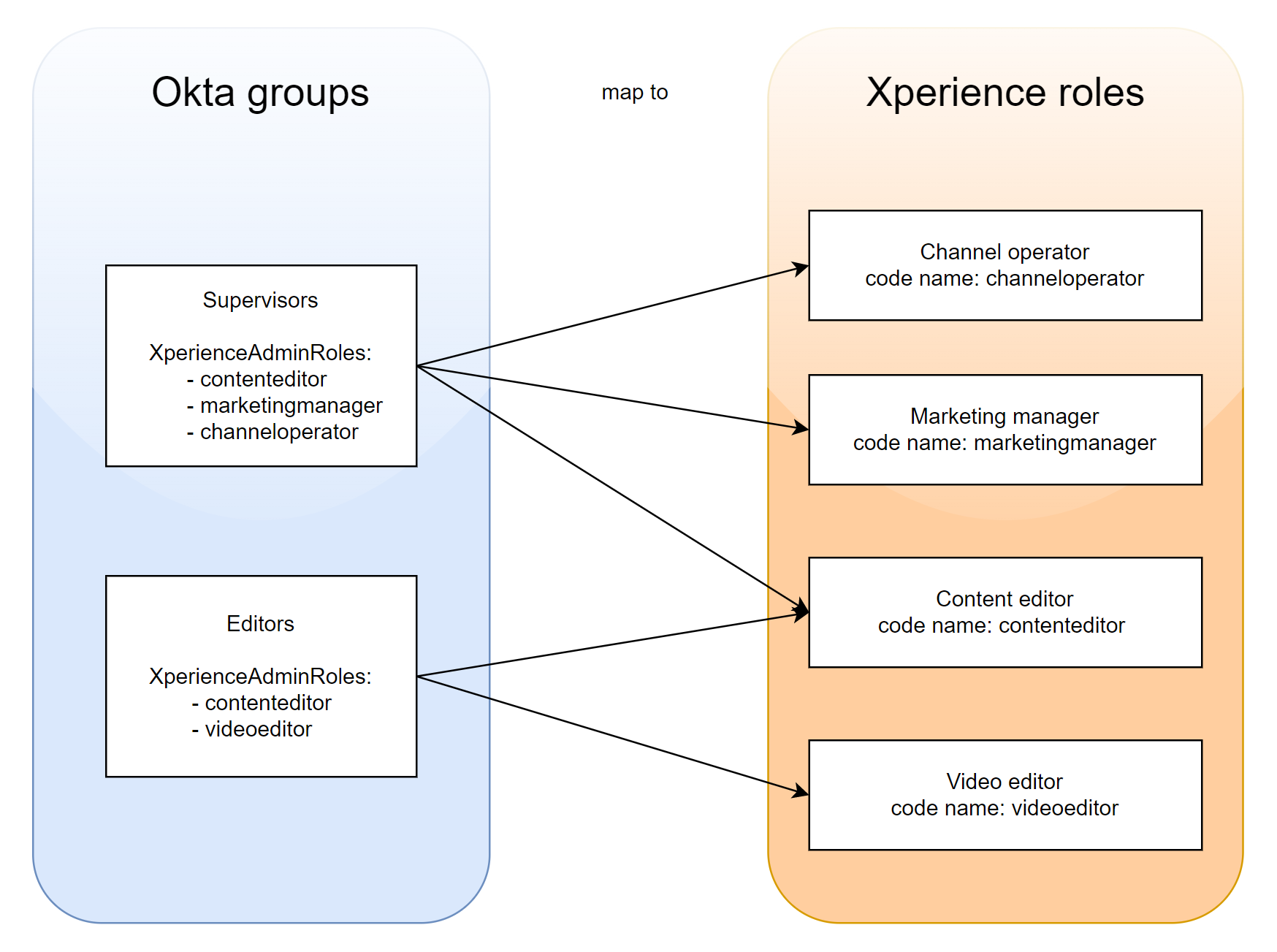

When users sign in, the system maps their Okta roles assignments to roles defined in Xperience.

Grant the Administrator role via Okta

The Administrator role is a default system role that cannot be modified or deleted. The system requires at least one user with this role assigned to exist in the system at all times. If you need to ensure the role can be granted to users via Okta (for example, if you wish to discontinue the default administrator account):

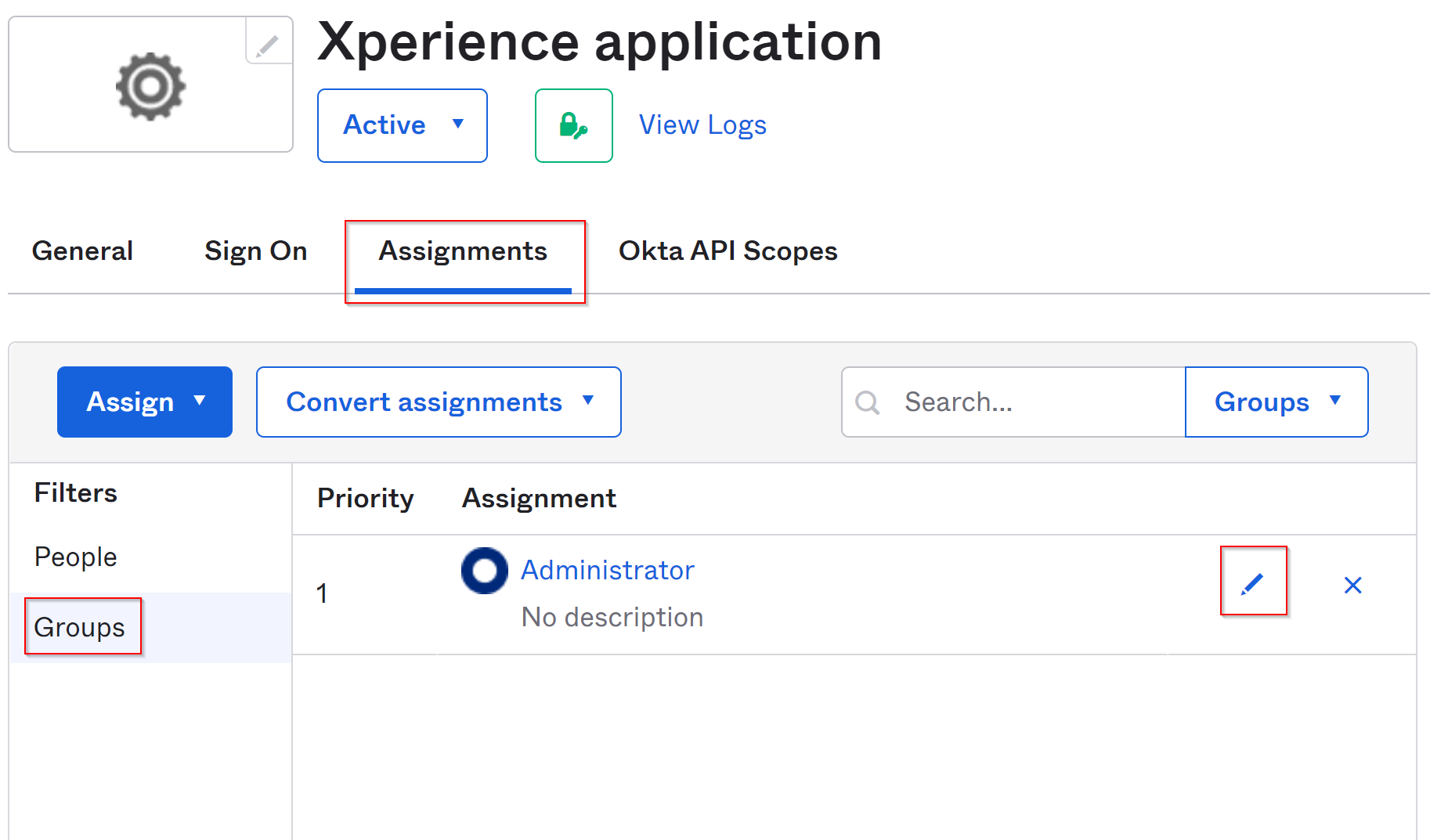

1. Open the Xperience application registration in Okta, switch to the Assignments tab, and under Filters select Groups.
2. Edit (blue pencil icon) a group and add Administrator to the XperienceAdminRoles attribute.
   • If you are making this change after Okta has already been set up (and users may, as a result, already have accounts in Xperience), make sure to have user data synchronization frequency set to Always to ensure the role is granted the next time users sign in.

All users from the modified group now have administrator privileges when they sign in.

Security considerations

See General security considerations for an overview of recommended security practices related to external authentication provider configuration and management.

User data synchronization frequency

The system allows you to configure the rate at which user information is synchronized with the external authentication provider. By default, user data is only taken when a user first signs in and their user account is created. However, this behavior can be changed via the UserSynchronizationFrequency option configurable within the AddAdminExternalAuthenticationProvider method:

builder.Services.AddAdminExternalAuthenticationProvider(
    builder => builder.AddMicrosoftIdentityWebApp(options =>
    {
        // External authentication provider configuration (Entra ID in this example)
    }),
    // Configures Xperience behavior with relation to the external authentication provider
    options =>
    {
        // Xperience synchronizes the user account with data from the external provider every time a user signs in
        options.UserSynchronizationFrequency = UserSynchronizationFrequency.Always;
    }
);

The following synchronization options are available:

Xperience synchronizes the following user data from the external provider:

• First name
• Last name
• Email
• Username
• Roles – only when synchronization is set to FirstLogin or Always.

What data is synchronized to each property can be changed via AdminExternalAuthenticationProviderOptions. See Claims mapping and transformations.

User account invalidation or lockout

If you wish to prevent a user from accessing the Xperience admin UI or completely delete their account:

1. In your identity provider, remove the user from the role or group assigned to the Xperience application registration (or restrict their account in some other way as permitted by the provider)
2. In the Xperience admin UI, open the Users application and Disable (via → Disable) or Delete () the user's account.

The user is now prevented from accessing the admin UI.

Claims mapping and transformations

Claims⁠ (opens in a new tab) are key-value pairs that contain verified information about a user. In the OIDC authentication flow, claims are sent by the identity provider within ID Tokens. Generally, these tokens are processed by the application and the information mapped to some internal representation of a user. In Xperience, this is the UserInfo object.

To facilitate working with claims, use the ClaimTypes class that provides the most common OIDC-compliant claim key identifiers in an easily accessible format. For example, ClaimTypes.Email resolves to the name of a key under which the user's email should be stored in the ID token received by the application.

By default, Xperience uses the following mapping for the admin UI user object, defined via AdminExternalAuthenticationProviderOptions:

Role claims are mapped to the UserRoleInfo binding object type.

If the external provider does not send a property under one these known claims, or you want to map a custom claim to one of the properties, you can modify the default mapping via AdminExternalAuthenticationProviderOptions within the identity provider registration:

builder.Services.AddAdminExternalAuthenticationProvider(
    builder => builder.AddMicrosoftIdentityWebApp(options =>
    {
        // External authentication provider configuration (Entra ID in this example)
    }),
    // Configures Xperience behavior with relation to the external authentication provider
    options =>
    {
        // Maps a different claim to the user name
        options.UserNameClaimName = "my_custom_claim";
    }
);

Mapping claims to other default or custom properties of the user object is not supported.

Additionally, you may wish to implement claims transformations⁠ (opens in a new tab) to leverage existing claims. Claims transformation is the process of modifying or adding to the claims within an identity token, before it is passed to the application for processing.

This process can be used to add additional information to a user's identity token, to change the format of the claims, or to filter out unnecessary claims. For example, you can modify role assignments from your implemented identity provider to have them match roles already present in Xperience. In other words, you can reuse existing assignments and save yourself the effort of setting up user groups specifically for Xperience.

See the following example for illustration. The code extends the set of a user's claims with an additional claim for the Administrator role based on whether the user is in the Acme.Administrator role:

using System.Security.Claims;
using System.Threading.Tasks;

using Microsoft.AspNetCore.Authentication;
using Microsoft.Extensions.Options;

using Kentico.Membership;

public class MyClaimsTransformation : IClaimsTransformation
{
    private readonly IOptions<AdminExternalAuthenticationProviderOptions> externalProviderOptions;

    public MyClaimsTransformation(IOptions<AdminExternalAuthenticationProviderOptions> externalProviderOptions)
    {
        this.externalProviderOptions = externalProviderOptions;
    }

    public Task<ClaimsPrincipal> TransformAsync(ClaimsPrincipal principal)
    {
        ClaimsIdentity claimsIdentity = new ClaimsIdentity();

        // Gets the roles claim key as configured for the application
        var claimType = externalProviderOptions.Value.RoleClaimName;

        // Adds the 'Administrator' role claim to users with the 'Acme.Administrator' claim
        if (principal.HasClaim(claim => (claim.Type == claimType) && (claim.Value == "Acme.Administrator")))
        {
            claimsIdentity.AddClaim(new Claim(claimType, "Administrator"));
        }

        principal.AddIdentity(claimsIdentity);
        return Task.FromResult(principal);
    }
}

Register the transformation to the application's IoC container. All registered transformations are applied automatically at runtime:

builder.Services.AddTransient<IClaimsTransformation, MyClaimsTransformation>();

Sign-in page behavior

The sign-in page into the Xperience admin UI by default only offers authentication via an external provider, if one is registered via AddAdminExternalAuthenticationProvider. The default forms authentication sign-in method is completely hidden. If you wish to change this behavior, you can do so via the AdminAuthenticationMode enum. The following options are available:

To change the behavior, use the AdminIdentityOptions object.

using Microsoft.AspNetCore.Builder;
using Microsoft.Extensions.DependencyInjection;

using Kentico.Membership;

var builder = WebApplication.CreateBuilder(args);

...

builder.Services.Configure<AdminIdentityOptions>(options =>
{
    options.AuthenticationOptions.Mode = AdminAuthenticationMode.MaintainForms;
});

General security considerations

When configuring external authentication for your projects, keep in mind the following practices and recommendations.

For more specific security practices consult the documentation of your chosen authentication provider.

Securely store application secrets

As a general security best practice, it is not recommended to store application secrets directly in code or application settings. Instead, consider using the following alternatives.

During development

When implementing and testing external authentication locally, use the Secrets Manager⁠ (opens in a new tab) utility provided by dotnet. The utility abstracts key management and storage. However, note that keys stored using the manager are not encrypted – use this approach only for local development.

cd "C:\my\xperience\WebApp\"

# Initialize the Secrets Manager
dotnet user-secrets init

# Stores a secret for local development
dotnet user-secrets set "Project:ExternalAuthProvider" "12345"

var builder = WebApplication.CreateBuilder(args);
...
// Reads the secret and stores it in a variable
var externalAuthApiKey = builder.Configuration["Project:ExternalAuthProvider"];

On production

For projects in production, consider the following options:

Sites hosted on Microsoft Azure

• Azure KeyVault⁠ (opens in a new tab)

Private cloud hosting

• DataProtection API⁠ (opens in a new tab)
• Azure KeyVault⁠ (opens in a new tab)

Xperience by Kentico SaaS

In SaaS deployments, configure secrets using environment-specific application settings files included in deployment packages. Keep the values separated per environment – see Application settings for different SaaS deployment environments.

Restrict access to deployment pipelines and Xperience Portal tokens and rotate secrets according to your security policy.

Access to the deployment packages that contain these settings is protected by security measures that Kentico enables for every SaaS project:

• Multi-factor authentication (MFA) is enabled by default and cannot be disabled. All users must set up MFA when they first access an Xperience Portal project.
• Role-based access control (RBAC) governs which users can upload deployment packages and manage personal access tokens. Assign the minimum required Xperience Portal role to each user.

Deployment-time secret injection

On top of the measures above, you can keep secret values out of source control entirely by injecting them during deployment. This approach requires a CI/CD platform that supports secure variable storage and token replacement.

1. Store configuration placeholders instead of secret values in the application settings files kept in source control.

   JSONappsettings.Production.json - source control version

   Copy

   {
       "ExternalAuthentication": {
           "Entra": {
               "ClientSecret": "#{ENTRA_CLIENT_SECRET}"
           }
       }
   }

2. Store the actual secret values in the secure variable storage of your CI/CD platform and mark them as sensitive so they are masked in build logs.

3. Replace the placeholders with the real values during the build or release stage, before the deployment package is created.

4. Upload the resulting package to Xperience Portal.

With this setup, the repository never contains secret values, and the values only exist in the CI/CD secret store and in the deployed application's configuration.
